Main Products
Hot Selling Packaged Canned Food And Homogenizer Sterilizer Milk Pasteurizer With Low Price
- Capcity: 100L-1000L
- Power: 9kw
- Voltage: 220v/380v
- Ports: Qingdao/Ningbo
- Size: 800*750*1230mm
- Payment: T/T,L/C,Western Union,MoneyGram, other
(※ Click this button to inquiry)
■ Application and Features
Introduction:

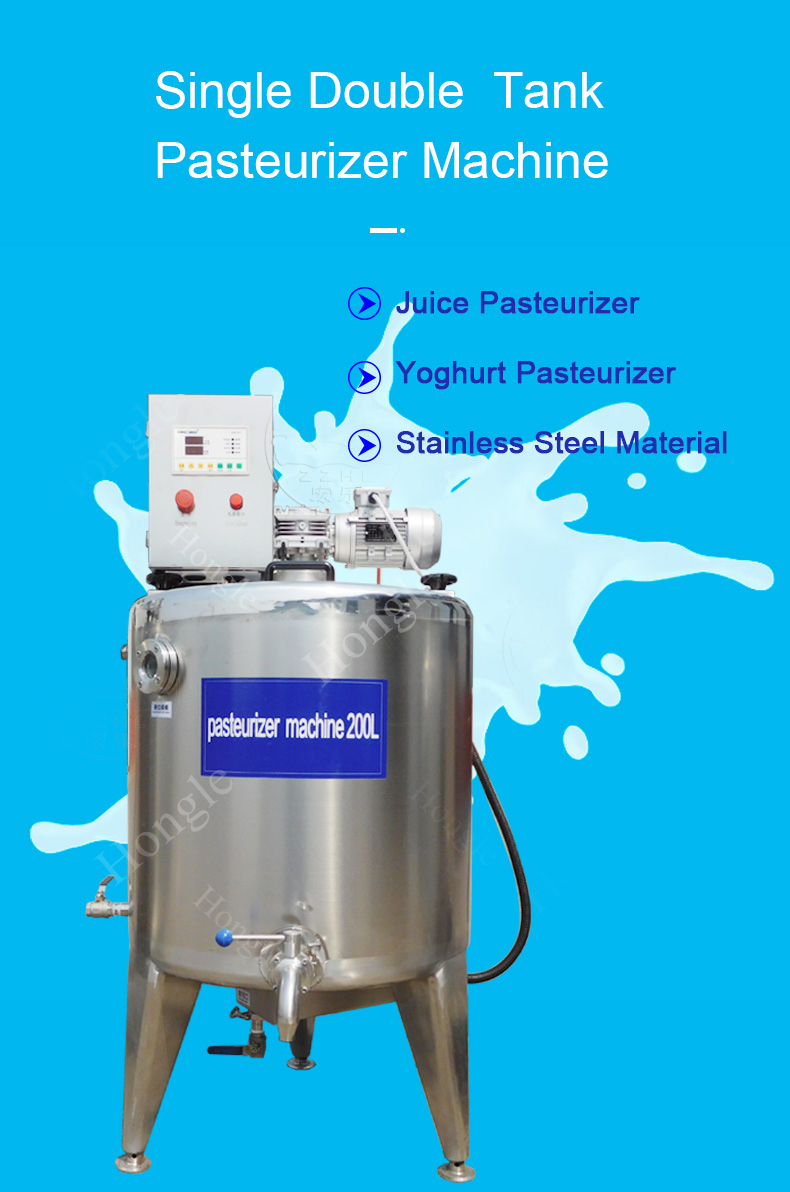

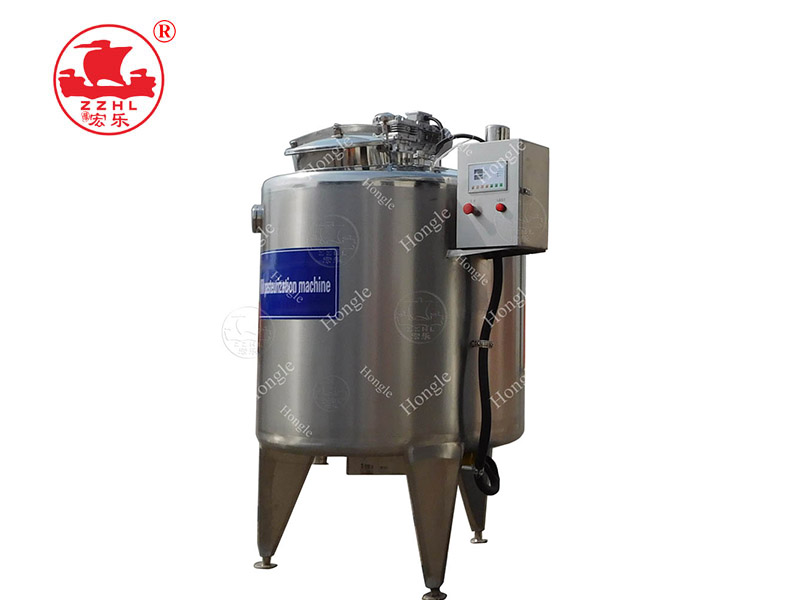

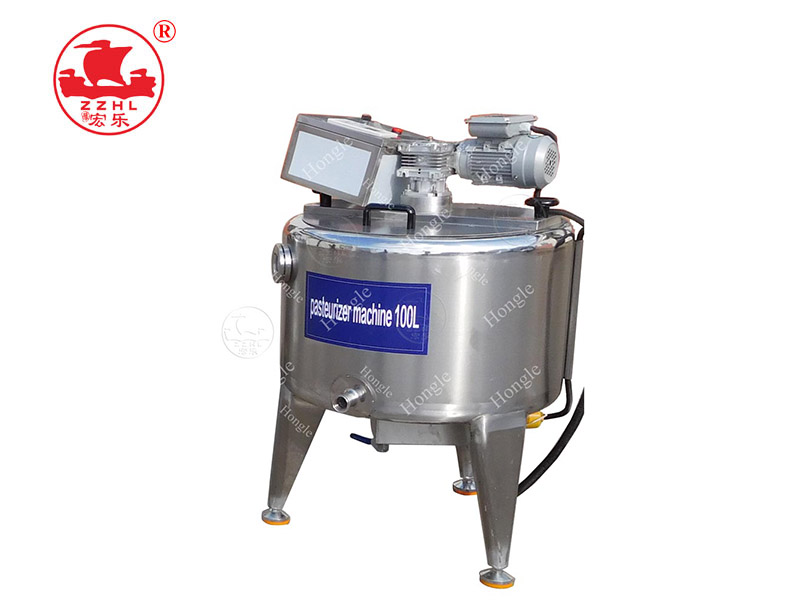

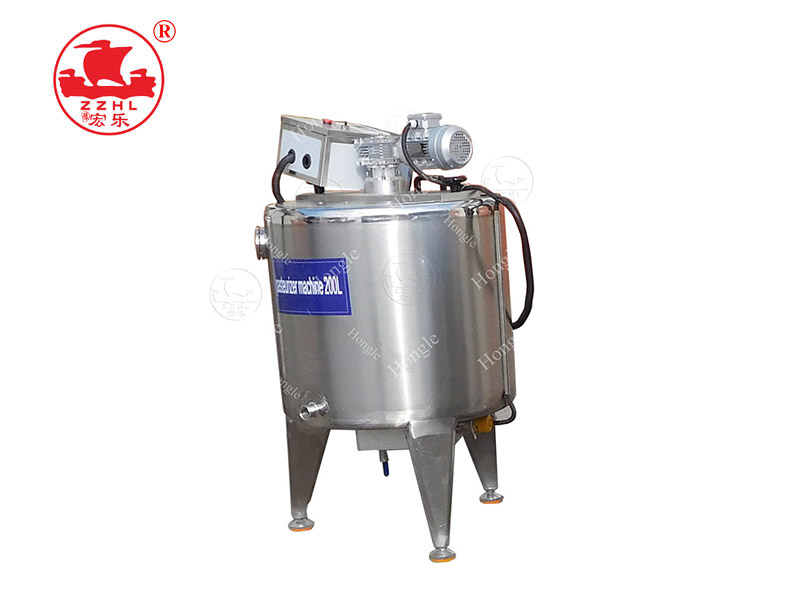

Electric heating Pasteur sterilization machine with the feature of the high temperature resistance, corrosion resistance, strong production capacity, no need steam heating etc, and is mainly used for milk, medicine, beverage, scientific research and industry departments.
Pasturing machine consists of pot body, pot, mixer, heating jacket, supporting and transmission device, the shaft sealing equipment etc. Pot body, pot, mixer, and shaft seal, electric heating device etc all made of by (USU304) stainless steel.
The pot body connects with pot cover; at the bottom of pot body have feeding hole, with agitator in the machine.
The heating jackets have feeding, temperature measurement, emptying valve, electric heat stick etc.
Pasturing machine consists of pot body, pot, mixer, heating jacket, supporting and transmission device, the shaft sealing equipment etc. Pot body, pot, mixer, and shaft seal, electric heating device etc all made of by (USU304) stainless steel.
The pot body connects with pot cover; at the bottom of pot body have feeding hole, with agitator in the machine.
The heating jackets have feeding, temperature measurement, emptying valve, electric heat stick etc.
Single-tank pasteurization is small in size and has a small water tank at the bottom. During sterilization, the hot water tank in the water tank is heated to 85 to carry out the sterilization process. When cooling, cold water is connected to the water tank, and the hot water in the water tank will flow out together with the cold water. Next time When sterilizing, reheat the cold water to 85 degrees to sterilize.
_41.jpg)
■ Specifications
|
Model
|
HL-S-100L
|
HL-S-300L
|
HL-S-500L
|
|
Barrel inner diameter
|
630mm
|
750mm
|
900mm
|
|
barrel outer diameter
|
740mm
|
900mm
|
1000mm
|
|
Inner Height of Milk Tank
|
400mm
|
750mm
|
850mm
|
|
Yield
|
100kg/batch
|
300kg/batch
|
500kg/batch
|
|
Sterilization temperature
|
45-90 degrees Celsius (adjustable)
|
45-90 degrees Celsius (adjustable)
|
45-90 degrees Celsius (adjustable)
|
|
power supply
|
380v9kw
|
380v 18kw
|
380v 24kw
|
|
Dimensions
|
800*750*1230mm
|
1000*1100*1650mm
|
1300*1100*1850mm
|
|
weight
|
100kg
|
220kg
|
270kg
|
