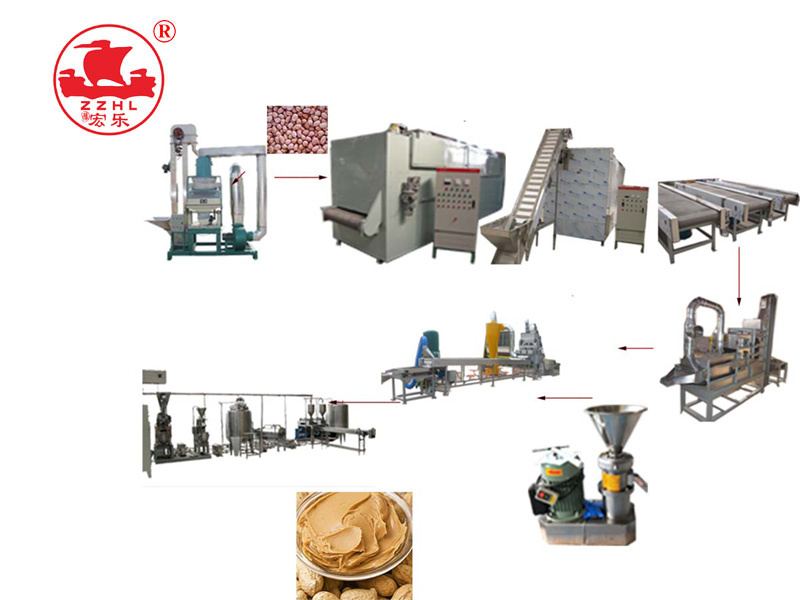

Peanut butterfrom roasting to filling processing line

Introduction


Parameter

Drum-type roasting machine

Rotary drum, heat conduction, heat radiation principle, using coal as fuel; low production cost (when baking is not in contact with fireworks)

Heating way:Electric heating internal stainless steel external stainless steel

1barrel roaster

Temperature :normal temperatureto 300 degree

Voltage: 380V 50HZ

Capacity :80—120kg/h

Heating power: 18KW

Motor: 1.1KW

Size: 3*1.2*1.7M

Cooling belt

Adopt speed regulationspeed reductionmotor.

Material: mesh belt, buckle plate, stainless steel, transmission parts, carbon steel.

Motor power:1.1KW

Fan: 0.55 KW - 5 units.

Speed: speed regulation

Voltage: 380V50HZ

Size :5*0.9*0.85m

Conveyor

Adopt speed regulationspeed reductionmotor.

Material: mesh belt, buckle plate,hopper ,stainless steel, transmission parts, carbon steel.

Size :0.6*0.6 mating height

Power:0.75KW

Speed: speed regulation

Voltage: 380V 50HZ

Peanut

Peeling Semi granular machine

This machine is a special equipment for processing half-grain of peanut. It has the advantages of high automation, high rubbing rate, low noise and no pollution. With a vacuum cleaner and a vibrating screen, the vacuum cleaner can absorb the peanut red skin, and the vibrating screen can separate/split the half-opened peanut and the germ, thereby processing the ideal peanut half-grain.

Material: hopper, sieve body, sieves, stainless steel, transmission parts, carbon steel.

Capacity:300-500kg/h

Voltage: 380V 50HZ

Power: 1.85KW

Size: 1900*800*1400mm

Weight: 300kg

Conveyor

Adopt speed regulationspeed reductionmotor.

Material: mesh belt, buckle plate,hopper ,stainless steel, transmission parts, carbon steel.

Size :0.6*0.6 mating height

Power:0.75KW

Speed: speed regulation

Voltage: 380V 50HZ

Grinder machine

It is composed of 160,130 combined stainless steel, semi-stainless steel and semi-steel colloid mill for fine grinding. Fineness can be adjusted according to demand.

Material: main engine, hopper, stainless steel, transmission parts, carbon steel.

Rough grinding + fine grinding

Material fineness 2-100um

Outline size: 110*75*130CM

Motor power :37KW

Storage tank

Receiving sesame butter after grinding ,stainless steel

Diameter :600*650*600mm

Volume :200L

Material：stainless steel 304

The thickness of tank:2mm

Plasterpump

Sauce transportation, contact food stainless steel

1.5KW

Mixing tank(mixing ,cooling

The tank after grinding sauce has the effect of cooling . The sauce is internally flowing, and the scraper is synchronously scraped to avoid sticking the paste onto the wall and reducing the cooling and cooling effect. The external inlet, the outlet water pipe joint.

When using cooling water, it needs to buy by the client's own cooling machine

Machine size:diameter1000×1700mm

Power :2.2KW

Volume :500L

External water pump:0.55 KW

Material: stainless steel 304 andcarbon steel transmission frame

Vaccum tank

The tank after grinding sauce plays the role of vacuum degassing. The sauce is internally flowing, and the scraper is synchronously scraped to avoid the paste sticking to the wall to reduce the cooling effect. A joint that comes in and out of the pipe outside.

Same pictureto mixingtank

The thickness of Bucket body: 5mm

304 material, 400 flanged manhole, vacuum table

2.2kW cycloid reducer + double stainless steel support (mechanical seal) + stirred leaves

2.2kW water ring vacuum pump + bucket + check valve + barrel connection pipe clamp.

Size :diameter 1000 x*2580mm

2.2kW cycloid reducer

Volume :500 L

Material: stainless steel 304 and carbon steel transmission frame

Stainless steel pipes, valves, elbows, and live connection.

semi-automatic filling machine

Main uses:mainly suitable for high viscosity liquid, rich in small granule paste and paste filling, such as sweet sauce, chili sauce, bean paste, chocolate sauce, jam, salad, condensed milk and so on.

Characteristic:

Piston type quantitative.

Mechanical leakage prevention.

All kinds of high viscosity liquids and granular liquids can be filled.

Number of filling Nozzles: 1

Capacity :100-400 bottles / h

Volume: 110 ml -1050 ml

Voltage:50HZ/220V/ 0.2-2kw

Quantitative error: ≤±1.5%FS

Required gas source: 0.4-1.0 MPa

Gas consumption: 0.1-2.0 m^3/m
