Other machine

You are here: Home > Products  > Other machine

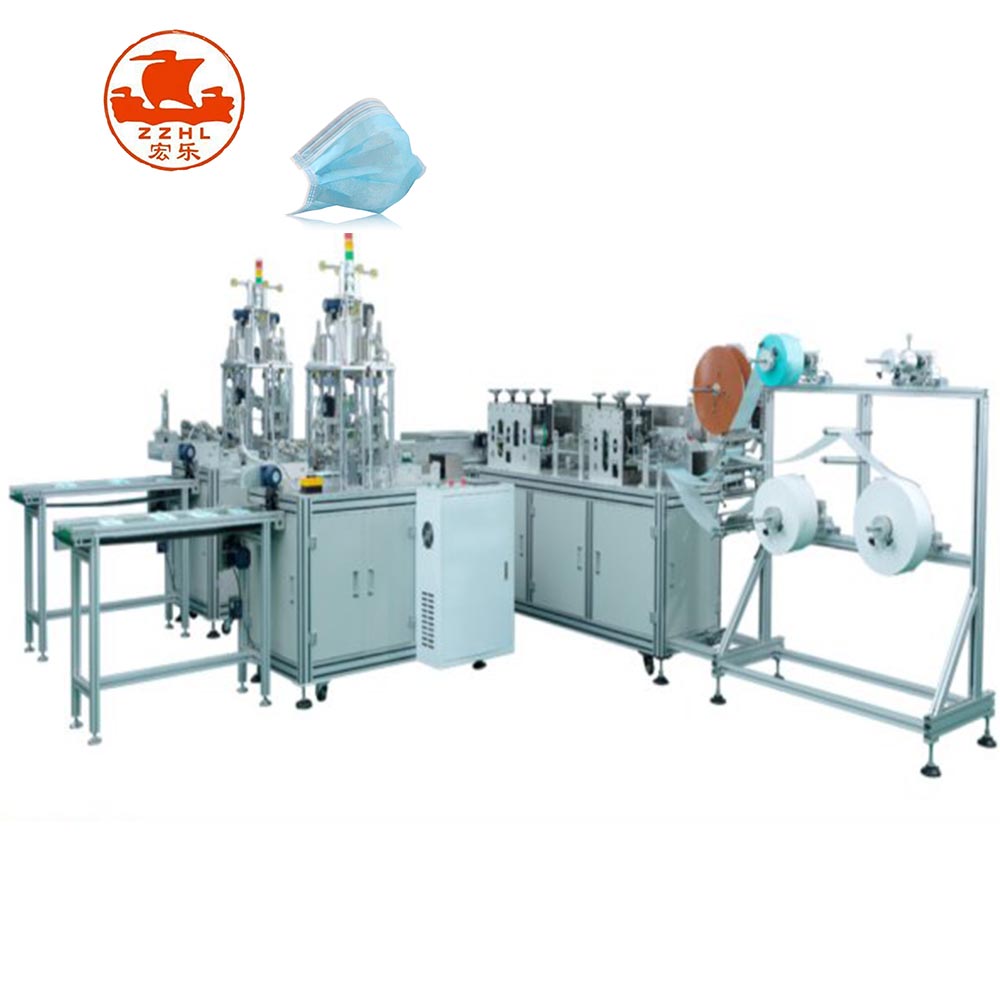

Full Automatic Disposable Medical Surgical Mask Making Machine

  • Capcity: About 80-100 pieces / min
  • Power:
  • Voltage: 220v
  • Ports: Ningbo / Qingdao/Shanghai
  • Size: 6250mm (L) x 4500mm (W) x 1650mm (H)
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • Mask Making Machine
  • Mask Making Machine
  • Mask Making Machine
  • Mask Making Machine
  • Mask Making Machine
■ Application and Features

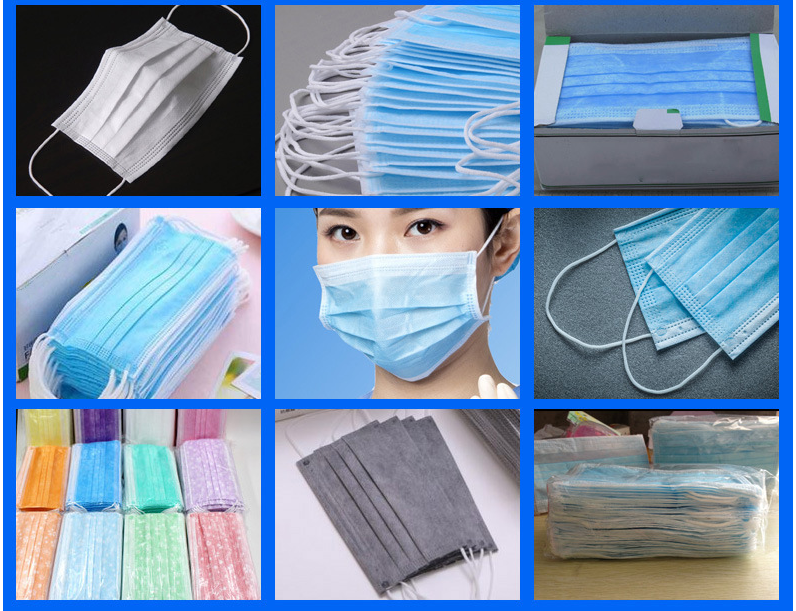

Mask knowledge:

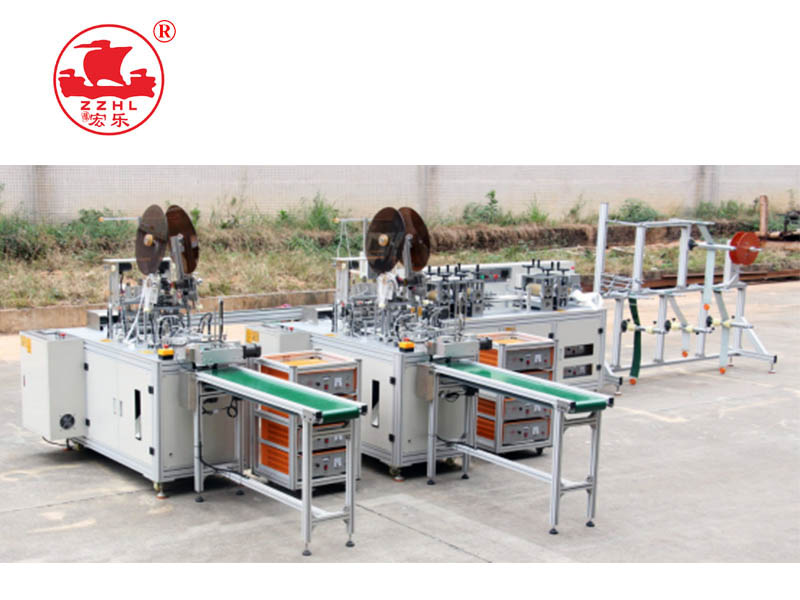

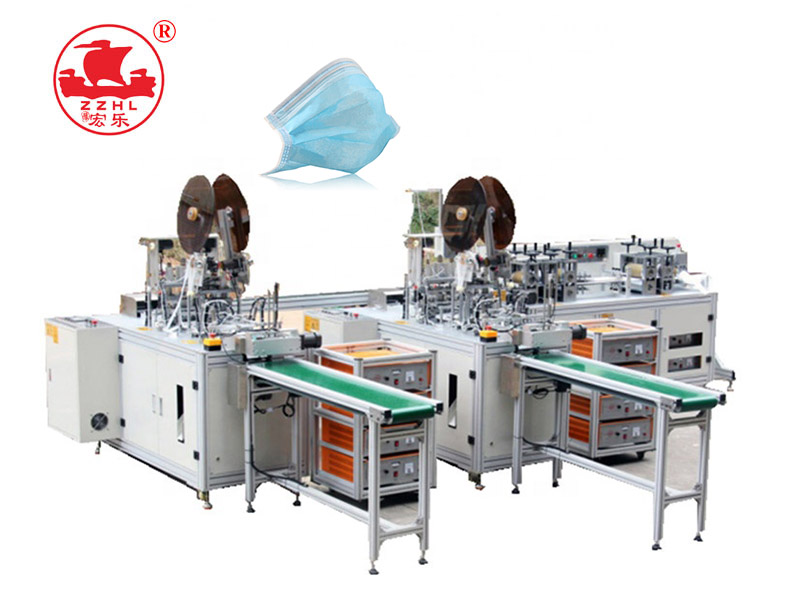

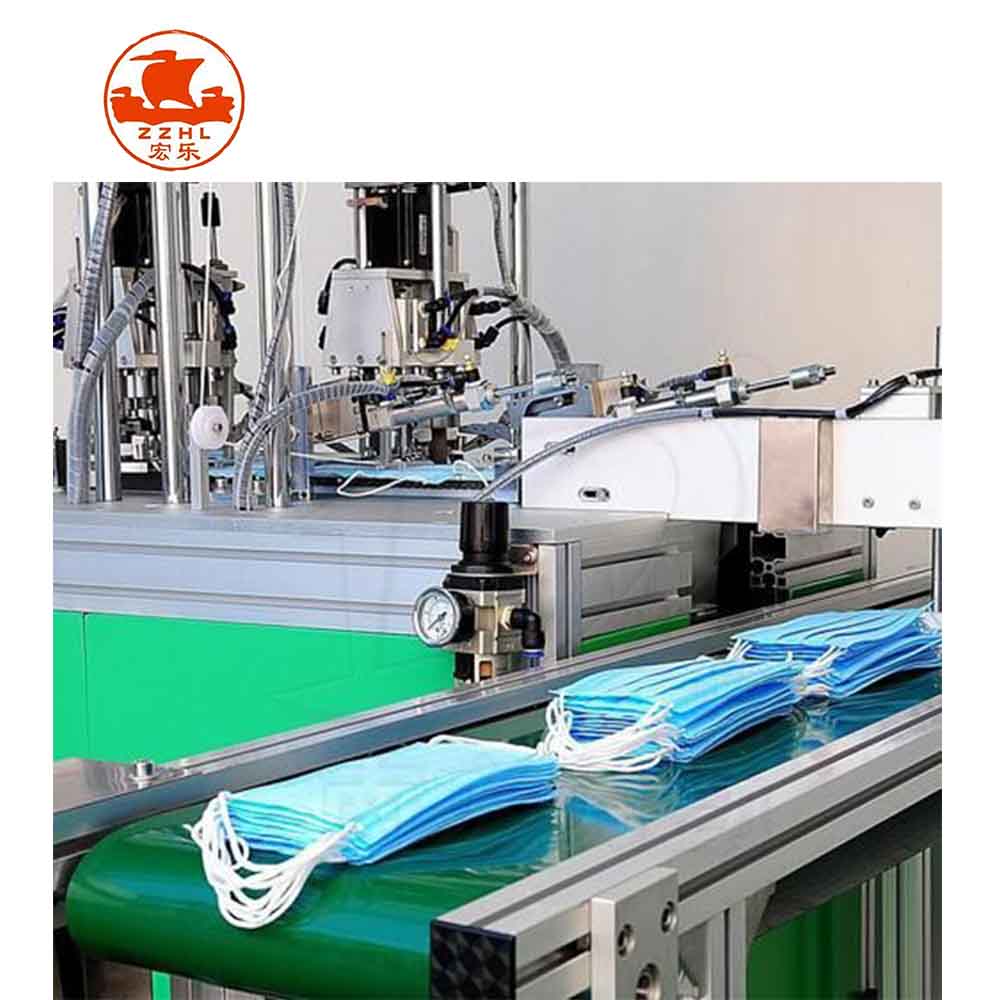

Whether the mask is medical or not has nothing to do with the machine. As long as the mask is sterilized, the mask produced by our machine can be used as surgical mask .Common medical masks: mainly composed of three layers of non-woven fabric. The inner layer is ordinary non-woven fabric, and the outer layer is non-woven fabric with waterproof treatment, which is mainly used to isolate the liquid ejected by patients. The filter layer in the middle is polypropylene melt blown non-woven fabric with electret treatment. After the final production, it shall be sterilized by ethylene oxide and kept for 7 days for volatilization toxicity, and then transported by sealed packaging.The full-automatic wiring combination machine is to connect one mask body manufacturing machine with two mask ear belt welding machines. When the mask body is made, the conveyor belt is sent to the mask ear belt welding machine to weld the ear belt part to complete a complete ear belt mask. Only one operator is required to operate the whole production line.

Technical parameters:

Model

HLZHW-100

Size

6250mm (L) x 4500mm (W) x 1650mm (H)

Driving mode

Servo motor and Stepping motor

Control

Touch screenand button

Electric control mode

PLC program control

Energy consumption

single-phase 220V, 50 / 60Hz

Air pressure

0.5-0.6mpa

Applicable process:

Double, three and four layer medical and ordinary masks

Product specification

Standard Type: 175 x 95mm; special type: 180 x 95mm, 145 x 90mm, 125 x 90mm

Production capacity

About 80-100 pieces / min

Qualified rate

More than 99%

Weight

800 kg

■ Specifications
