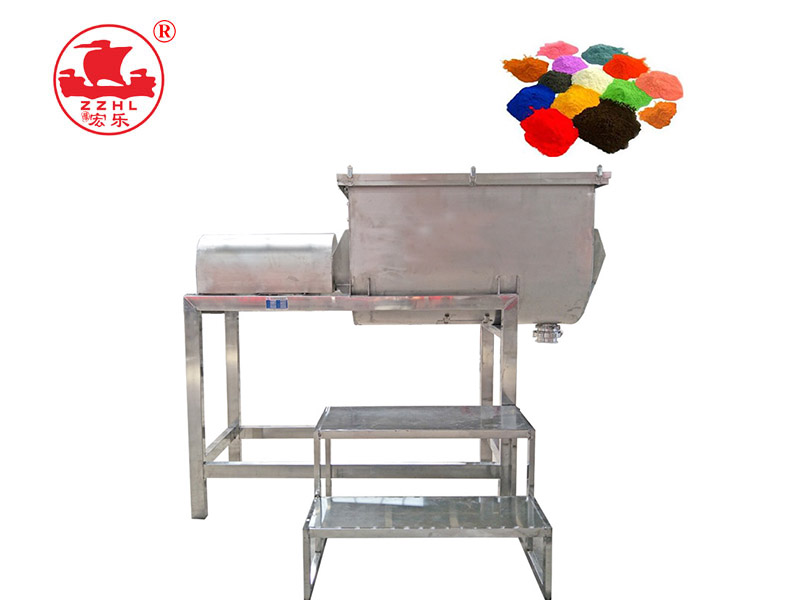

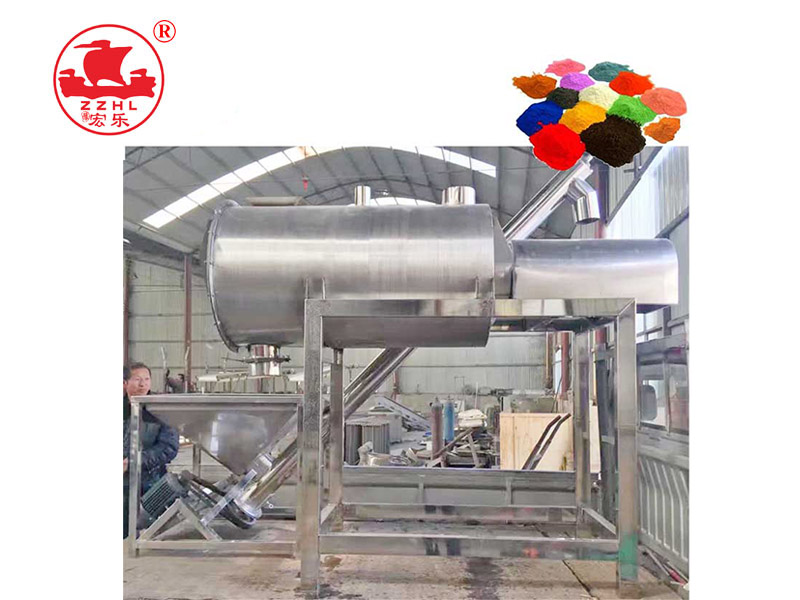

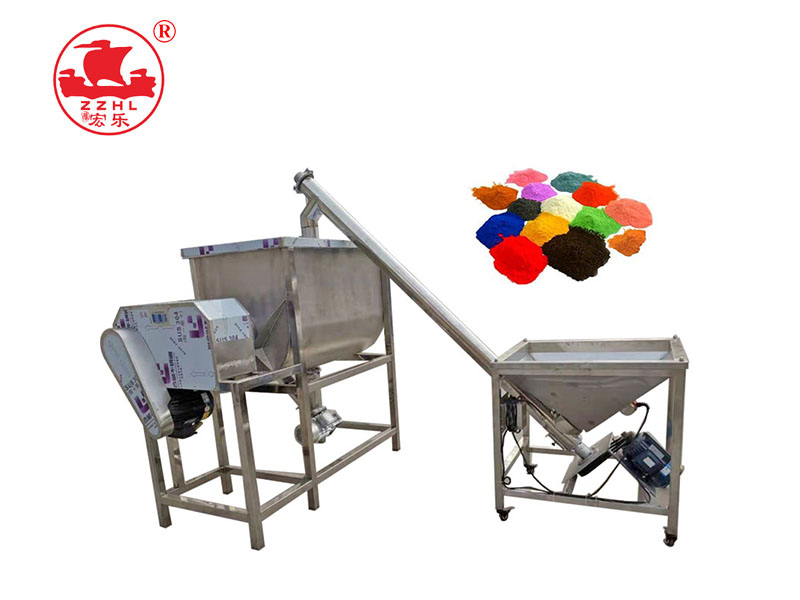

Horizontal Ribbon mixer powder mixing machine dry

  • Capcity:
  • Power:
  • Voltage:
  • Ports:
  • Size:
  • Payment:

Send an E-mail to us!

(※ Click this button to inquiry)

  • Horizontal Ribbon mixer powder mixing machine dry
  • Horizontal Ribbon mixer powder mixing machine dry
  • Horizontal Ribbon mixer powder mixing machine dry
■ Application and Features

Scope of application:

Horizontal ribbon mixer is used in pesticides, veterinary drugs, food, chemicals, biology, aquaculture, ceramics, refractories, plastics, compound fertilizers and other solid-solid (ie powder and powder) solid-slurry (ie powder It is especially suitable for the mixing of viscous materials.

Features:

The horizontal ribbon mixer is not affected by the size and density of the particles under the feasibility factor. It also has a good mixing effect on viscous materials.

The smooth mixing process reduces the damage to fragile materials, and the installation of the flying knife structure also plays a role in crushing.

The horizontal structure has a lower body height and is easy to install.

The positive and negative rotating ribbons are installed on the same horizontal axis, forming a low-power and high-efficiency hybrid environment.



■ Specifications

Model

Machine size(mm)

Weight(kg)

Voltage (kw/v)



Capacity

HLHDF-440(Round type)

2250*720*1700

260

2.2/380

350L/batch

HLHDF-550(U type)

2250*800*1700

380

3/380

450L/batch

HLHDF-870(Round type)

2600*920*1980

560

5.5/380

750L/batch

HLHDF-1160(U type)

2600*1020*2050

700

7.5/380

1000L/batch

HLHDF-1650(Round type)

2800*1160*2200

800

11/380

1500L

HLHDF-2100(U type)

2800*1280*2300

850

15/380

2000L
