Packaging machine
Aerosol Spray Paint Spray Can Aerosol Making Filling Production Line Automatic Aerosol Filling Machine
- Capcity: 4000-8000cans/day
- Power: 100w
- Voltage: 220V, single phase , 50hz
- Ports: Qingdao/Ningbo
- Size: 1500*900*1700mm
- Payment: T/T,L/C,Western Union,MoneyGram, other
(※ Click this button to inquiry)

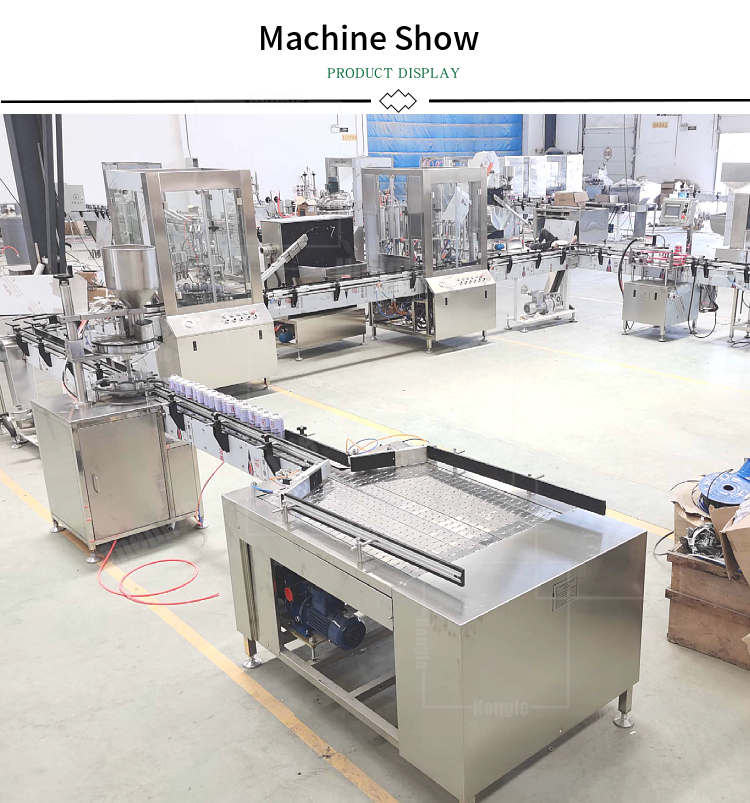

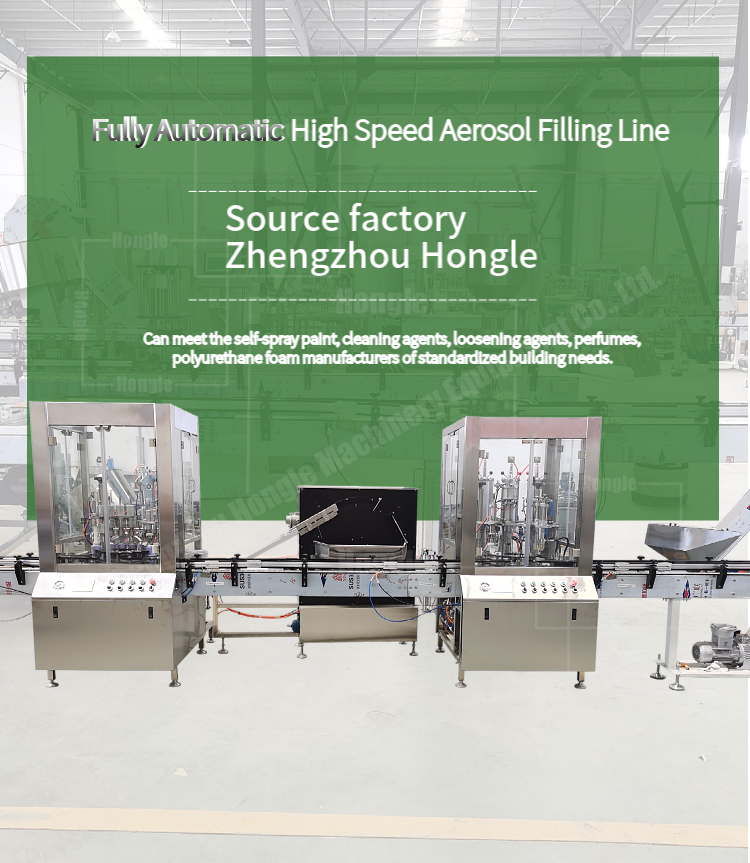

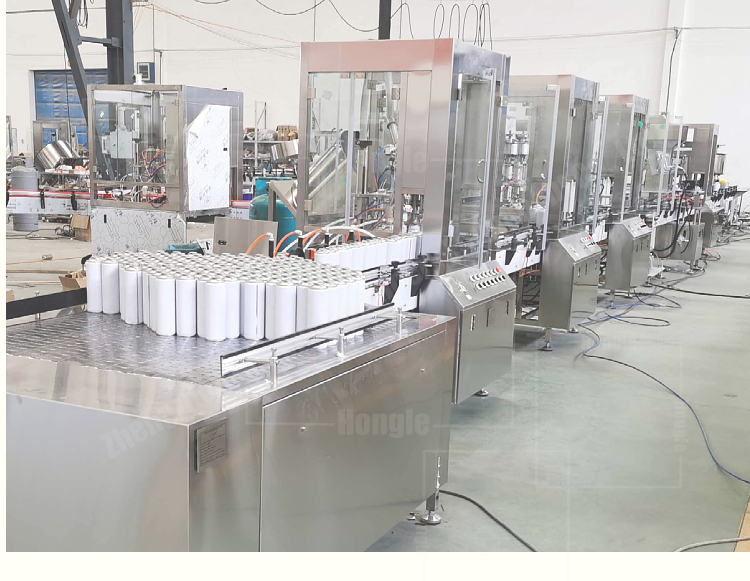

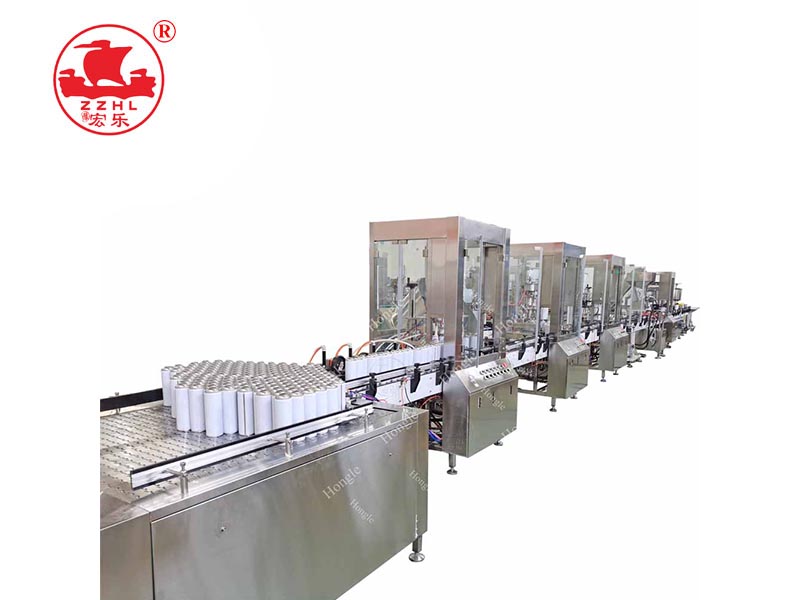

Fully Automatic Aerosol Filling Lines/ High speed Automatic Filling Lines
consist of cans arranging machine, rotary liquid filling machine, valve inserting machine, rotary crimping and gas filling machine, automatic weight checker, water bath, nozzle presser, cap presser, ink jet printer, packing table, etc. Propellants could be
LPG, DME, CO2, N2, compressed air, etc, widely applied in spray paint, air freshener, insecticide, body spray, cosmetics, food ,aerosols.
Working Process:
Cans loading table ----Liquid filling machine---- Valve inserting machine ---- Valve fixing& sealing& propellant gas filling machine ---- Weight checking machine ----Water bath tank---- Actuator pressing machine ----Cap pressing---- Ink jet printer ----other packing systems
_100.jpg)
_98.jpg)
_91.jpg)
| No. | High Speed Filling Line-Single Index | |
| 1 | Fully automatic high speed aerosol filling line (Speed up to 60CPM) Remarks: The full line required approximately 4-5 cubic meter of clean compressor air ,equivalent to 30kw of compressor , required pressure range 6-8 bar (0.6-0.8Mpa) |
empy can arrange table (Standard type) |
| ball droper machine (suitable for 12-16mm ball ) | ||

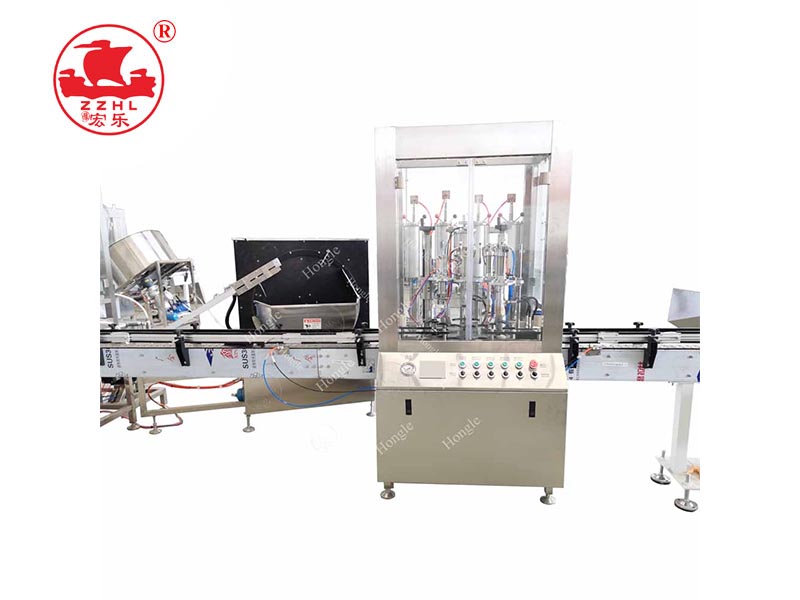

| Automatic products fillers(4 heads) . | ||
| Automatic Valve Feeding Machine | ||

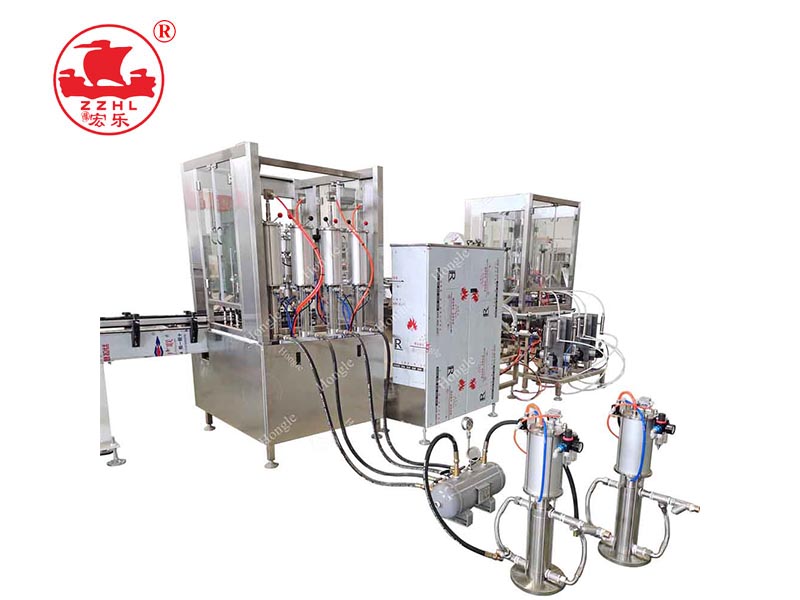

| Automatic Crimping&Gassing Filling Machine( 4 heads) | ||
| Automatic Rotary Medium Speed Weight Check Machine Speed 60CPM | ||
| Automatic water bath tank machine | ||
| Automatic Hot Air Dry Machine | ||
| Automatic Pneumatic Index Type Actuator Fitting Station Speed 60CPM | ||
| Automatic cap feeding machine Speed 60CPM | ||
| Conveyor belt & explosion motor & packaging table | ||
| Special code belt （Customer should prepare code machine ） |
||
Please enter your demand such as Raw material type,Capacity, Feeding material size, Final product size. We will reply you as soon as possible.
