Packaging machine
Automatic Canned Oxygen Nitrogen Cylinder Aerosol Filling Machine China Oxygen Cylinder Filling Plant
- Capcity: 600-1000cans /hr
- Power: 1.5KW
- Voltage: 220v/380v
- Ports: Qingdao/Ningbo
- Size: 1050*610*1780mm
- Payment: T/T,L/C,Western Union,MoneyGram, other
(※ Click this button to inquiry)
■ Application and Features

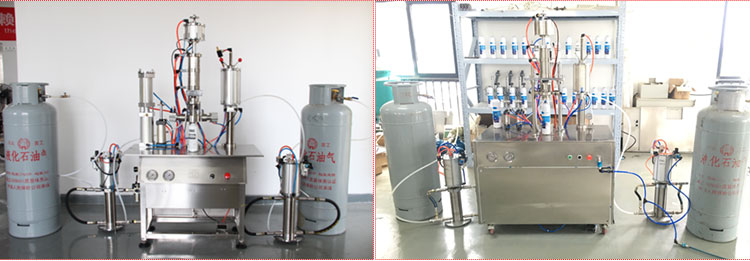

1600D Semi automatic aerosol air oxygen filling machine price for factory

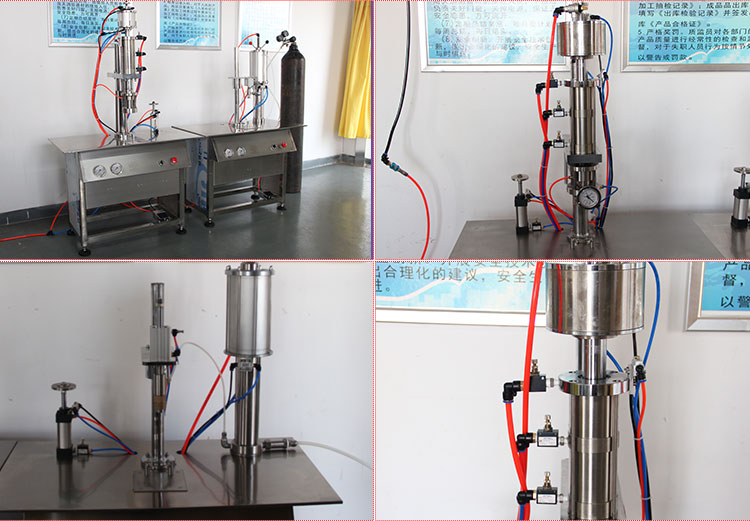

1600D Portable Oxygen canister vacuum crimping and gas filling machine
This equipment is pneumatic,used the compressed air as power,no electricity, safe, reliable, and widely used for filling portable oxygen, butane gas cartridge,Cassette gas and other canned gas. The whole machine consist of two units,one is vacuum crimping machine, the other is gas filling machine. We design it in one working table or two working table .The machine is safe and reliable ,maintained conveniently .It has small-occupied area and simple operation, belongs to economical aerosol production equipment.
■ Specifications
|
Model
|
1600D
|
|
Production capacity
|
3000-4000cans/day
|
|
Applicable can diameter
|
35-80mm
|
|
Applicable can Height
|
60-350mm
|
|
Vacuum degree
|
-0.05Mpa (tin can) -0.06Mpa(aluminum can)
|
|
Max gas filling volume
|
Max 750e water for example)
Max 15000ml (take compressed air for example)
|
|
Filling accuracy
|
±0.03Mpa
|
|
Max air consumption
|
1 m³/min
|
|
Applicable Gas
|
Oxygen, compressed air, nitrogen, CO2 (Oil-free)
|
|
Packing dimension(one working table)
|
1300*650*1560mm 170kg
|
|
Packing dimension(two working table)
|
1100*590*1560mm 140kg + 1100*590*1560mm 110kg
|
