Packaging machine

You are here: Home > Products  > Packaging machine

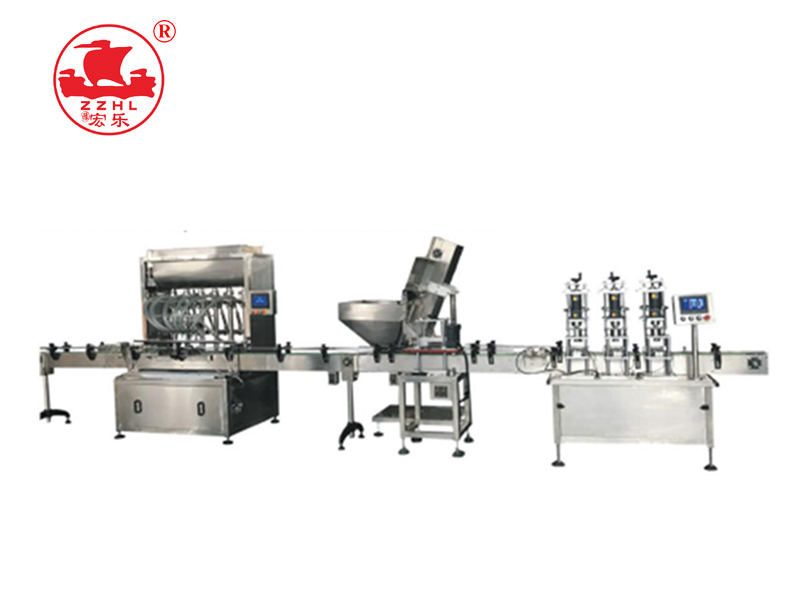

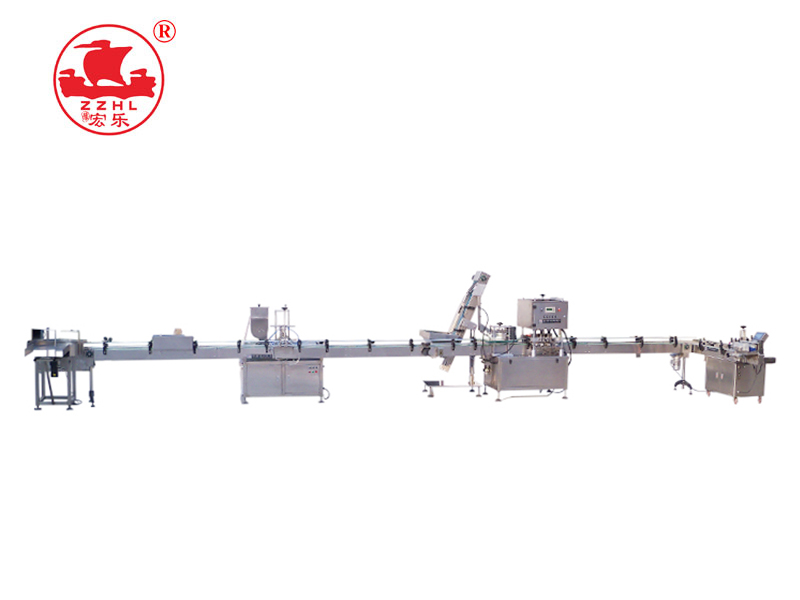

Fully automatic Pneumatic Piston Jam And Peanut Butter Filling Machine Virgin Coconut Oil Bottling Machine

  • Capcity: based on customer's request
  • Power: 2100w
  • Voltage: 220v/380v
  • Ports: Ningbo / Qingdao
  • Size: based on customer's request
  • Payment: T/T,L/C,Western Union,MoneyGram, other

Send an E-mail to us!

(※ Click this button to inquiry)

  • peanut butter filling machine
  • peanut butter filling machine
  • peanut butter filling machine
■ Application and Features

1.J Rotary Bottle FeedingMachine

This machine adopts frequency control for rotary motion, the bottle in the rotary tangential force in order to enter the conveyor belt, supporting and packaging production lines, save labor, improve efficiency, applicable range of 50-1000ml container glass bottles, plastic bottles, plastic bottle, etc..

The main parts of this machine are made of high quality stainless steel and meet the requirements of GMP.
2. Flip Bottle Degaussing Blow Machine

Parameters

Filling Range

100-1000ml, 500-1500ml

Filling Speed

0-40 bottles/min

Filling Accuracy

±2%

Weight

300kg

Voltage

380V

Power

2100W

Size

2000*800*1500mm



The granule filling machine is mainly designed for filling with thick and granular sauce likematerial. It is automatic feeding and automatic induction filling. Especially suitable for dressing of particles and the concentration of the spicy sauce, chili sauce, beef sauce, soy bean paste, fresh chili sauce, seafood sauce, curry sauce, butter Hot pot bottom material, Sichuan fermented black bean, Chili oil Hot pot bottom material and other material thick sauce filling.This type of paste filling machine adopts photoelectric automatic control system, unique piston filling form, which can not only continuous filling, but also free filling machine.This type of filling machine adopts horizontal mixing structure, which ensures the full mixing of sauce and oil, greatly improves the filling performance and the accuracy of metering.
3. Automatic Pumping Vacuum Rotate Capping Machine



Parameters

Bottleneck Dia

φ30-φ85mm

Bottle Height

80-250mm

Bottle Cap Dia

φ38-φ55mm

Rotate Capping Speed

≤60 Bottles/Min

Gas Pressure

0.6-0.8MPa

Gas Consumption

100L/Min

Voltage

380V

Power

3500W

Weight

700KG

Size

3000*1000*1900mm

This machine is suitable for processing the cannedfood,beverages,condiments,health care products and other industries in the three spin tinplate cover(4) of the vacuum glass bottle screw cap .It have no cover ,lack of automatic alarm,and other functions.

4.Labeling Machine

Parameters

Labeling Speed

100-250 bottles/min

Labeling Precision

±1mm

Circular Bottle Diameter

φ20mm—φ100mm

Labeling Height

φ20mm—φ140mm

Labeling Lenght

≤340mm

External Dia of Paper Roll

≤φ300mm

Inside Dia of Paper Roll

≥ φ76mm

Valtage

220V

Power

200W

Size

2000*1050*1300mm

Vertical labeling machine adopts advanced rolling on labeling, using computer control fiber, synchronous tracking, a bid by the stepper motor or servo motor control, automatic detection and automatic container and label size, location and other advanced features, to ensure accurate labeling, automatic synchronization.The host adopts microcomputer mode control, touch type large LCD panel, display and storage of ten sets of memory devices, is a modern advanced mechanical and electrical equipment. When the single machine is in use, the optional delivery (receiving) material tray can also be directly connected with the production line, and the utility model has excellent and reliable working performance. It can also be equipped with printer to print labels synchronously. Self-adhesive labeling machine is easy to clean, not moldy, after labeling beautiful, firm, will not fall off their own, high production efficiency. This series of models is made of 304 stainless steel and advanced aluminum alloy treated by anodic treatment. It conforms to GMP standard. It is suitable for automatic labeling of containers in medicine, daily chemicals, food and other industries.

■ Specifications
