Introduction of Frozen Potato Chips Production Line

hoisting and feeding ----- washing and peeling----- selecting-----hoisting and feeding-----cutting into slices or sticks----- rinsing -----blanching and color protection----- removing water----- frying ---- de-oiling----- freezing (FROZEN STICKS ) or seasoning ( POTATO SLICES)-----conveying -----packaging
1) The french fries production line is made up of stainless steel, durable and healthy.
2) According to your capacity we have semi-automatic and fully automatic processing line for your choice.
3) Apart from using potato as material, you could also use other food as well, such as sweet potato, carrot ,banana chips and other kinds of taros.
4) Multipurpose cutting machine, able to cut potatoes to slice or bar shape, and you could adjust the thickness and size of them.
5) Advanced frying machine, highly increasing the using life of oil, saving energy.With Pure oil filtration process, use less oil, to improve the rate of replacement of oil.6). This equipment has automatic discharge, automatic mixing, and automatic temperature control function Note: The power source could use Electric, Coal, Diesel oil, natural Gas and Conductive-oil etc .and the special sizes could customize based on the demands of user.

Ⅰ.Detailed introduction of potato chips washing and peeling machine

This device is easy to operate, high output, clean peeling result, peeling rate up to 98% or more, all made of stainless steel. It’s currently the largest and most advanced peeling and cleaning equipments for potatoes.

Ⅱ.Detailed introduction of potato slice and shred machine：

Ⅲ. Detailed introduction of blanching machine

This equipment is made of stainless steel and has the characters of automatic control, automatic temperature control, hot display showcase, easy operation, quick heating.

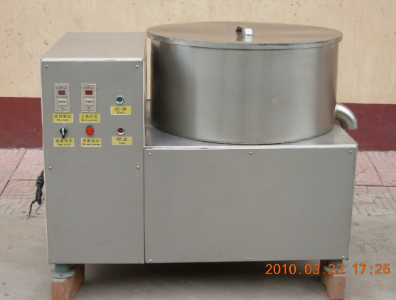

Ⅳ.Centrifugal Dewatering machine:

After blanching, the chips moisture is very high; we have to dewater it in order to get the best chips after frying.

Model: HYTS-500
Capacity: 80kg/h
Power: 0.75kw /380v
Dimension: 940x560x830mm
Weight: 400kg

This equipment is of convenient operation, high yield and is made of stainless steel, adopting the centrifugal principle, electromagnetic braking, automatic control system.it is the present domestic most advanced vegetables dewatering equipment

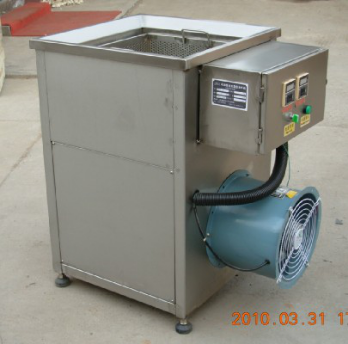

Ⅴ. Potato frying machine

To ensure the quality of fried products, use pure peanut oil, corn oil, cottonseed oil, and every 8-12 hours thoroughly change oil, fry temperature control in 180-190 degrees c, cannot exceed 200 ° c, Frying generally does not exceed 1 minute.

Ⅵ. Deoiling machine

Our machine adopts the centrifugal principle, electromagnetic braking, digital automatic control, and is made of stainless steel.  It is mainly for the second oil off processing, which reduces the oil consumption and prolongs the shelf life. After the processing the product will have bright color, crisp delicious and high quality. It is most advanced Fried foods deoiling equipment at present.

 Model: HYTY-500
Power: 0.75kw/380v
Weight: 400kg
Dimension: 940x560x830mm

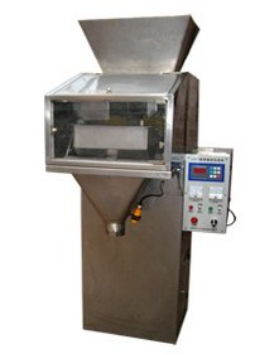

Ⅶ. Packing  machine

This small single hopper weight packing machine is controlled by computer , set to materials and mechanical weighing of combining the quantitative bagging equipment. The machine has accurate measurement, display straight 'view,easy to operate, reliable in performance, the small noise,made by stainless steel, has strong corrosion resistance, price cheap characteristics, it is an idea equipment of quantitative packaging machinery.

Main technical parameters

Product parameters
★convey height：1900mm ★Weight：180kg
★Convey capacity ：18cubic meter / hour（adjustable）
★Bunker volume：0.15 cubic meter
★Voltage：220V 50HZ ★Power：500W
★Size:2100x730x2350mm
      Details about the elevator

HLG-900 Vertical ink wheel lettering sealing machine

Vertical multi-function automatic sealing machine can continuously finish conveying, sealing, marking the completion. It can used for variety of materials, like aluminum foil bags and plastic bags. Medicine, pesticide, food, daily chemical, oil and other industries also need Vertical multi-function  automatic sealing machine.It has Vertical & Horizontal sealing function.Also based on user need to mark date and batch number, etc., but also applies to pipeline facilities.

Model :HLG-900

Voltage: 220V/50Hz
Power:500W
Sealing speed:0-12m/min
Sealing width:6-12mm
Temperature range:0-300℃
Printing Category: Drum indentation

The maximum carrying capacity:3kg
Size (L×W×H):860×420×365mm
Weight:22kg

refrigerating chamber

Frozen Potato Chips Production Line
