Vegetable Fruit Processing Machine
Onion paste production line
- Capcity:
- Power:
- Voltage:
- Ports: Qing Dao,Ning Bo
- Size:
- Payment: T/T,Western Union L/C
(※ Click this button to inquiry)
Onion paste production line

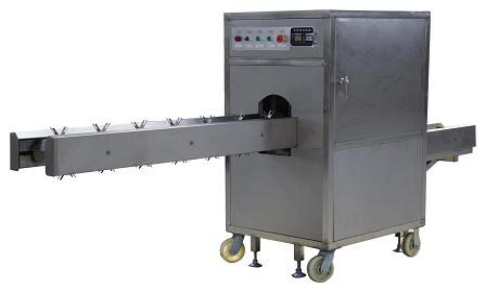

1.Onion root cutting machine
Material quality: stainless steel
Dimension: 3130 * 750 * 1380 mm
Power: 1.11 kw
The electric voltage: 380 v
Electric machine: copper wire national standard
Benefit: the automatic feeding, automatic cutting root device, the machine adopt stainless steel, durable, no rust, no pollution removal of onion finished smooth level off, remove the quantity is small, high yield, output can reach six hundred kg per hour, is an economic and practical, efficient and green onion processing equipment.

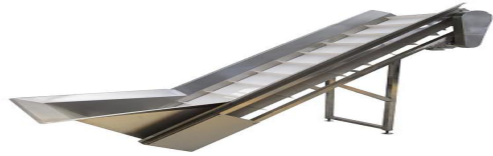

2.Elevator
.png)
Jane interface : after cutting root cutting head, the onion by hoisting machine can continuously even promoted to peeling equipment, save a lot of labor, increase production.
Model:TQ-5
Machine size:2500*900*1900mm
Power:0.37kw
Voltage:380v

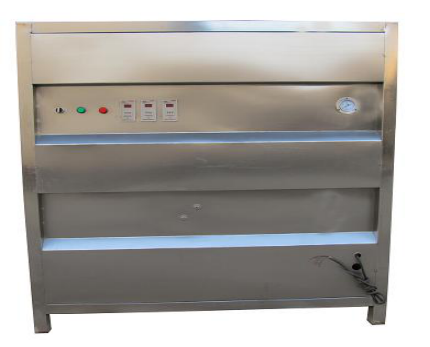

3.The onion peeling machine
Material quality: stainless steel
Dimension: 1340 * 860 * 1500 mm
Power: 0.2 kw
The electric voltage: 220 v
Introduction: after peeling Onions smooth without damage, the surface is smooth, no pollution.This equipment is practical, save electricity, high production efficiency, easy maintenance and cleaning, low failure rate, etc.

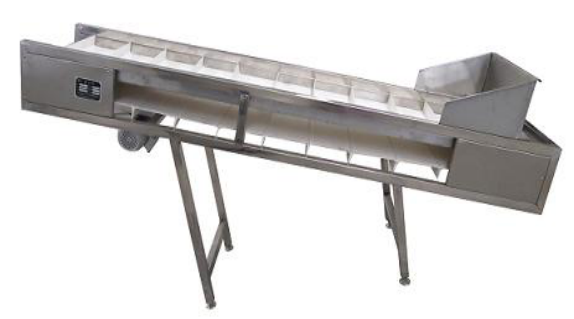

4.Ascension pick line
Dimension: 2500 x740x1400mm
Power: 0.37 kw
The electric voltage: 380 v
Electric machine: copper wire national standard motor
Jane interface: using the mesh belt transmission to the next procedure at the same time, pick out the defect or peeling incomplete materials, picking, convenient, save time and effort and continuous operation.
5.Rinse line
Dimension: 3000 * 1100 * 1400 mm
Mesh belt width: 600 mm
Material quality: stainless steel
Power: 1.87 kw
The electric voltage: 380 v
Electric machine: copper wire national standard
Introduction: equipment has a bubble generator, the materials become state, starch and effectively remove material surface impurities, debris from the overflow tank overflow, sediment discharge outlet, in order to achieve the purpose of cleaning.Clean thoroughly, energy saving, water saving, equipment is stable and reliable, etc.

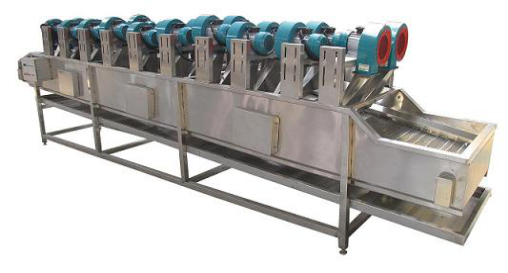

6.Air drying dehydration lines
Dimension: 4000 * 1200 * 1600 mm
Mesh belt width: 800 mm
Material quality: stainless steel
Power: 9.75 kw
The electric voltage: 380 v
Electric machine: copper wire national standard
The introduction: material through the mesh belt transmission, then turn over for many times, in order to realize the material more surface uniformity of the wind and the wind, through the high pressure of blower wind will put food cooling or surface water dry, the wind the wind knife shape, effectively increase the air pressure, make the material on the surface of the moisture to evaporate blow away or in a short time, facilitate storage or processing.

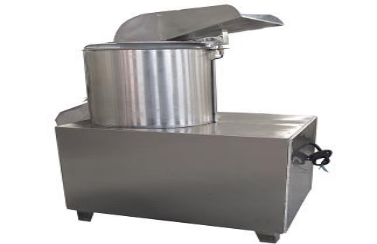

7.Fruit and vegetable cutting machine
Machine size：860*510*1280mm
power：5.5kw
Voltage：380v
Onion paste production line
|
Machine name |
quantity |
|
Onion root cutting machine |
1 |
|
elevator |
1 |
|
The onion peeling machine |
1 |
|
Ascension pick line |
1 |
|
Rinse line |
1 |
|
Air drying dehydration line |
1 |
|
Fruit and vegetable cutting machine |
1 |
Please enter your demand such as Raw material type,Capacity, Feeding material size, Final product size. We will reply you as soon as possible.
