Flow chart:

Onion root cutting machine→Elevator→onion peeling machine→Picking →lineonion washing machine

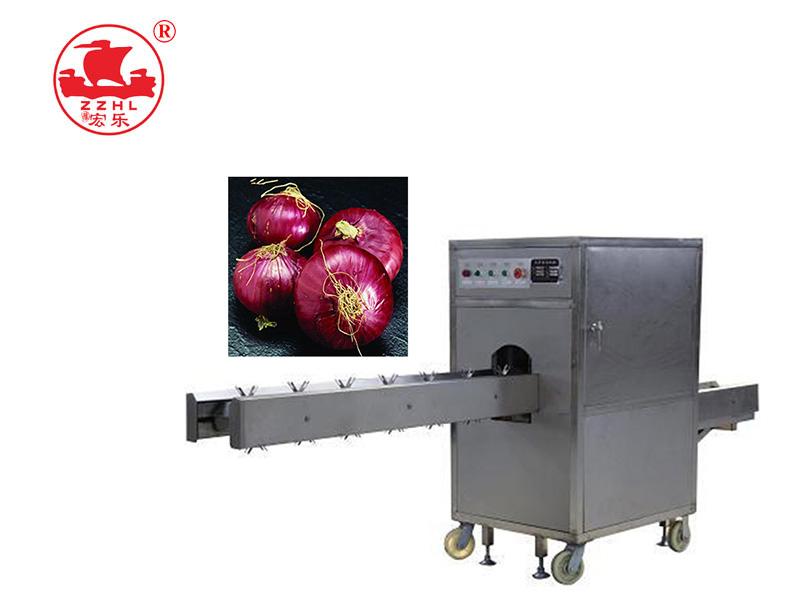

1.Onion root cutting machine

Material quality: stainless steel
Dimension: 3130 * 750 * 1380 mm

Capacity :600kg/h

Weight:200kg

Power: 1.11 kw

Electric machine: copper wire national standard

Benefit: the automatic feeding, automatic cutting root device, the machine adopt stainless steel, durable, no rust, no pollution removal of onion finished smooth level off, remove the quantity is small, high yield, output can reach six hundred kg per hour, is an economic and practical, efficient and green onion processing equipment.

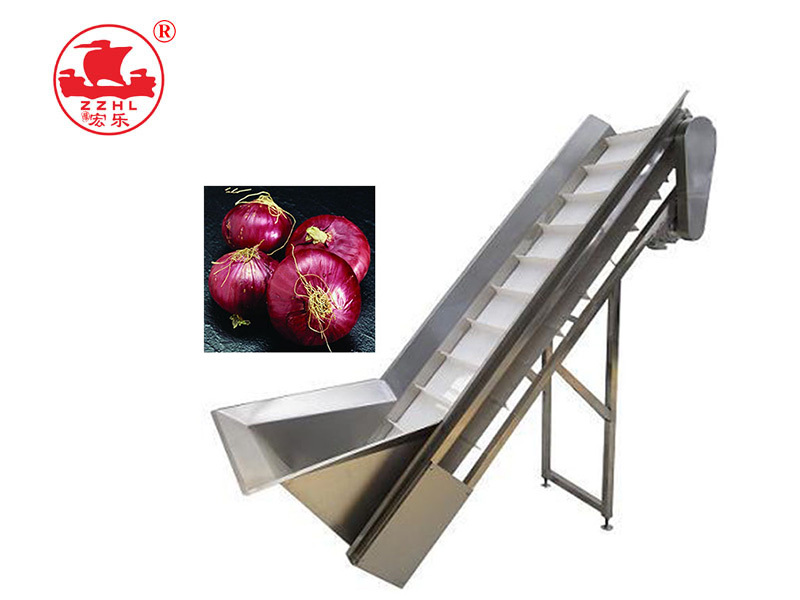

2.Elevator

Jane interface : after cutting root cutting head, the onion by hoisting machine can continuously even promoted to peeling equipment, save a lot of labor, increase production.

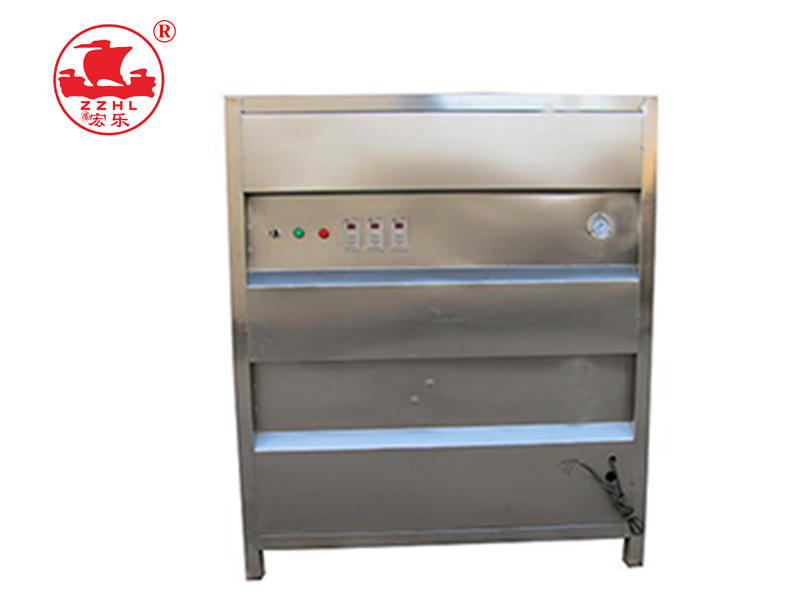

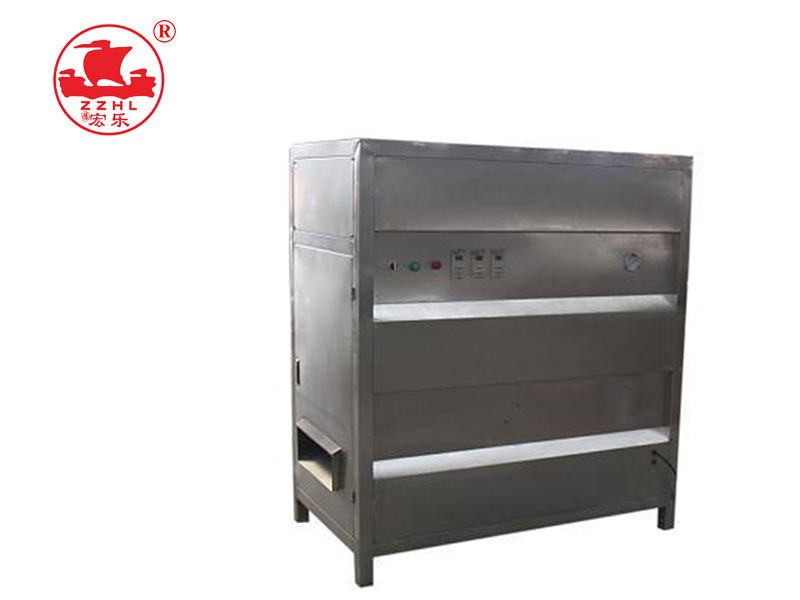

3.The onion peeling machine

Material quality: stainless steel
Dimension: 1340 * 860 * 1500 mm

Power: 0.2 kw
The electric voltage: 220 v

Weight :160kg

Capacity :600kg/h

4.Picking line Brief introduction:

the use of belt transmission to the next process at the same time picking a defective or peeled incomplete materials, convenient, time-saving and picking continuous operation.

5.onion washing machine Introduction

Brush roller washing machine is designed according to market demands to wash, oval fruit and vegetable scrub etc. Mainly applied in potatoes, sweet potato etc. It has many advantages, such as big effective volume, high efficiency, water-saving ,continuously working, simple operation and long service life etc, brush roller materials is durable and has good wearproof ability through special processing.
