Vegetable Fruit Processing Machine

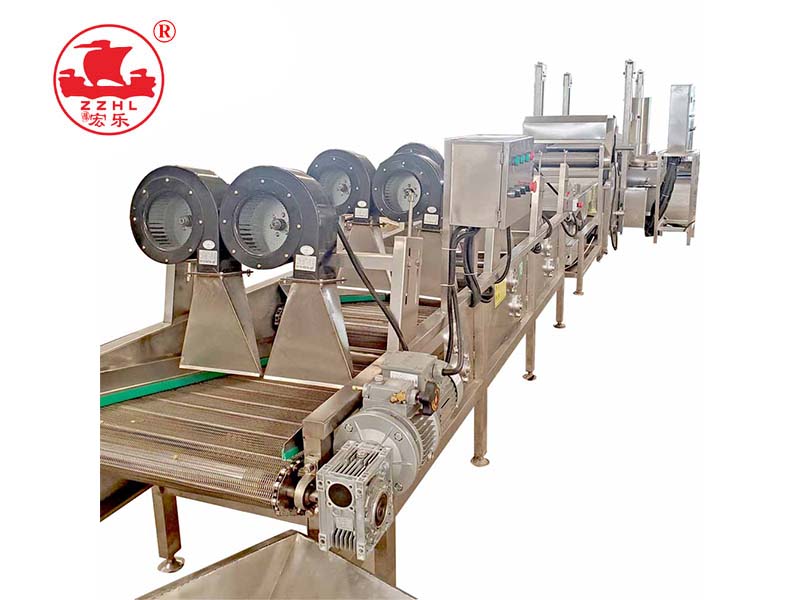

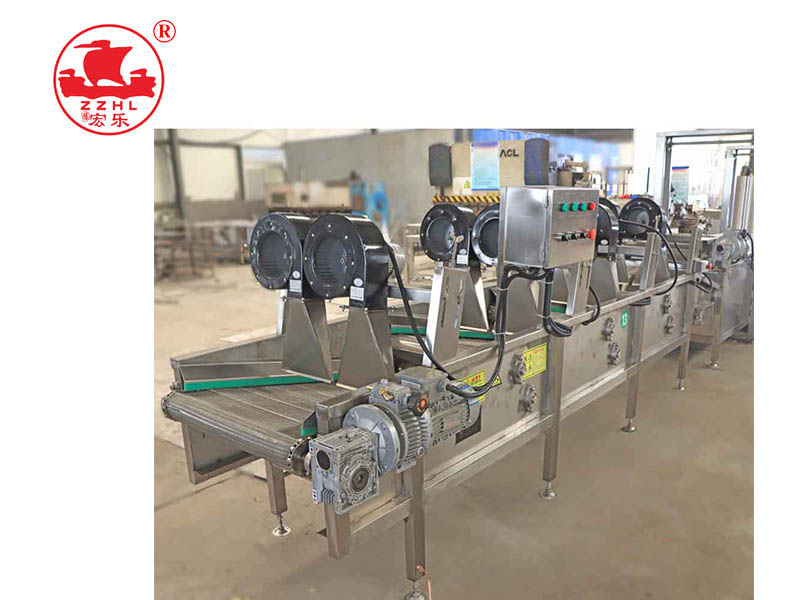

vegetable wind dryer Cassava tomato air flow blower surface water drying machine
- Capcity: 1000kg/h
- Power: 10kW
- Voltage: 220v/380v
- Ports: Qingdao/Ningbo
- Size: 5000*1300*1500mm
- Payment: T/T,L/C,Western Union,MoneyGram, other
(※ Click this button to inquiry)

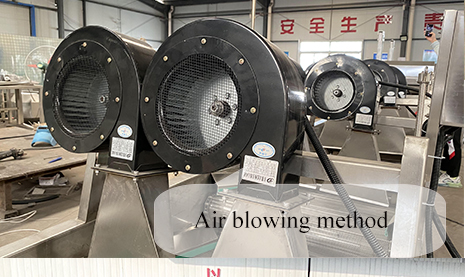

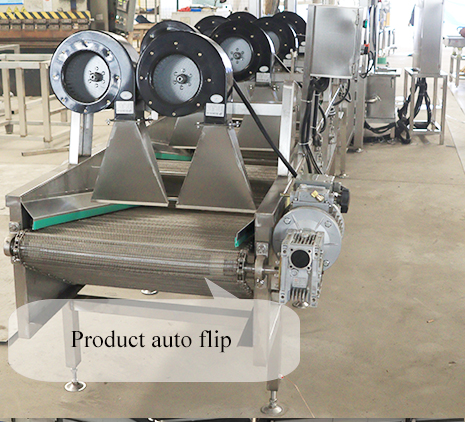

The surface air dryer is suitable for air drying after sterilization of high and low temperature meat products, vegetable and flexible packaging products after sterilization, and is also suitable for removing surface water after washing fruits and vegetables. Through multiple fan draining and upper high pressure strong cold wind blowing, the surface water of material can be blew off and dry. The air dryer can be operated continuously, only loading the cleaned or sterilized product on the conveyor belt, when the machine start, the surface water can be removed by the strong wind.
It increase production efficiency and reduce labor intensity.
Model |
HL-DD-50 |
Dimension (LxWxH) |
5000*1300*1500mm |
Packing size/plywood case size: |
5.2*1.5*1.7m |
Weight |
600kg |
Processing capacity |
1000kg/h |
Belt width |
800mm |
Rated power |
10kW |
Voltage |
380V, 50Hz, 3 phase |
Steel material |
TH=2.0mm, SUS304 |
Belt material |
Stainless steel 304 |
conveyor power |
1.1kW |
Fan power |
0.75kW |
Number of fan |
12 |
Rotate speed of fan |
2800r/min |
Air volume |
1200m3/h |
Width of fan knife |
10mm |
Fan arrange |
Double row |
Use method |
Use directly after connect the water and electric source |
Please enter your demand such as Raw material type,Capacity, Feeding material size, Final product size. We will reply you as soon as possible.
